Column Types Overview

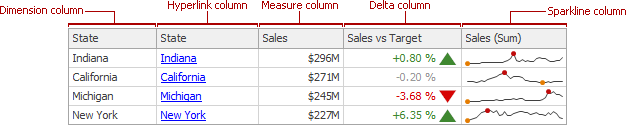

The Grid dashboard item supports five column types:

Dimension Column - Displays grouped values from the bound data item and allows you to provide discrete categorical information.

Hyperlink Column - Allows you to display hyperlinks in the Grid dashboard item.

Measure Column - Displays summaries calculated against data in the bound data item.

Delta Column - Bound to two measures. Calculates summaries for both measures, and displays the difference between these summaries.

Sparkline Column - Displays values in the bound data item using sparklines.

When you drop a data item in the Columns section, it automatically determines the column's type based on the data.

Column Type Indication

The corresponding data item container in the DATA ITEMS area indicates the column type.

Column type indicators are defined as follows:

Dimension Column

Measure Column

Delta Column

Sparkline Column

Hyperlink Column

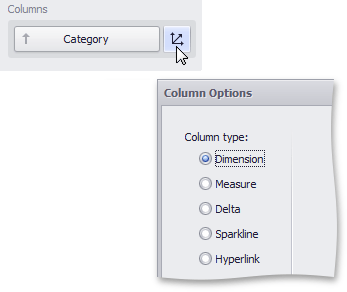

Changing Column Type

To change the column type, click the column type indicator. In the invoked Column Options window, select the column type from the Column type section.
