Drill-Down

The built-in drill-down capability allows you to change the detail level of data displayed in dashboard items on the fly.

The Chart dashboard item supports drill-down on argument or series values.

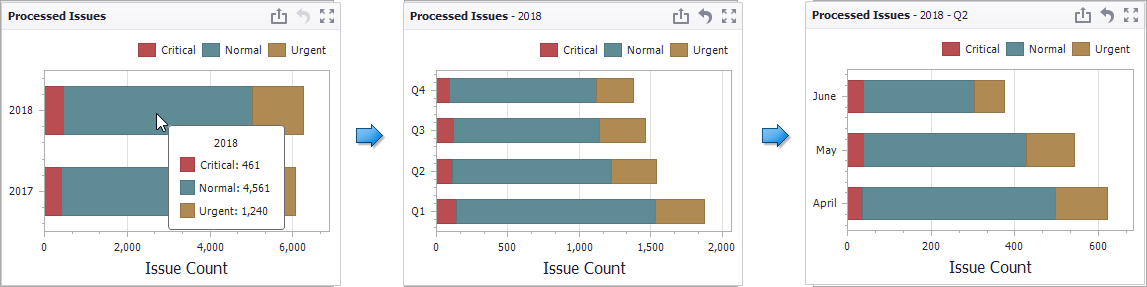

Drill Down on Arguments

When drill-down on arguments is enabled, you can click a series point to view a detail chart for the corresponding argument value.

Drill-down on arguments requires that the Arguments section contains several data items, from the least detailed to the most detailed item.

To enable drill-down on arguments, click the Drill Down button in the Data Ribbon tab of the Chart Tools contextual tab set (or the

button if you are using the toolbar menu)...

...and the Arguments button (or the

button if you are using the toolbar menu).

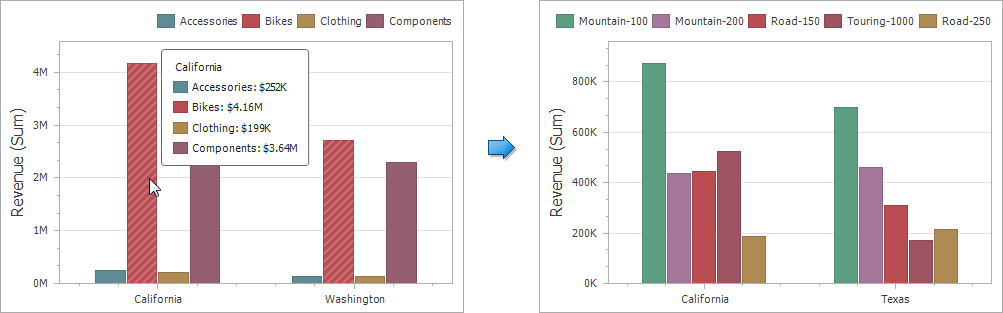

Drill-Down on Series

When drill-down on series is enabled, an end-user can click a series point to view a detail chart for the corresponding series.

Drill-down on series requires that the Series section contains several data items, from the least detailed to the most detailed item.

To enable drill-down on series, click the Drill Down button in the Data Ribbon tab (or the

button if you are using the toolbar menu)...

...and the Series button (or the

button if you are using the toolbar menu).

Drill Up

To return to the previous detail level (drill up), use the Drill Up button within the Chart caption or in the context menu.
